Tideflex Effluent Diffusers

Tideflex effluent diffuser valves and Multiport systems out-perform conventional diffusers.

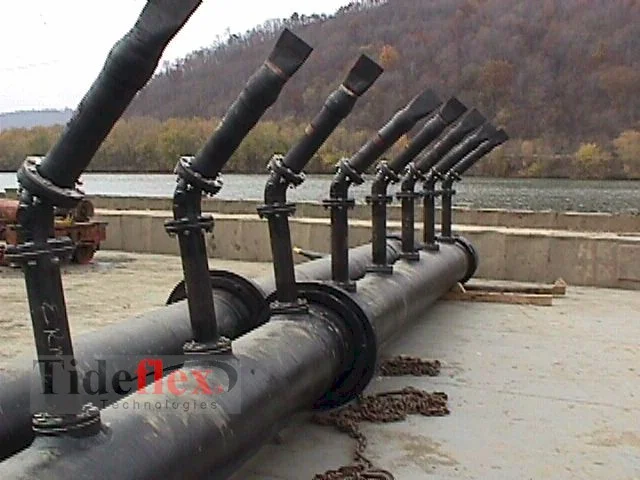

Tideflex Diffusers.jpg

Key Features

  • Prevents intrusion

  • Improves initial dilution

  • Enhances jet velocity

  • Provides a more uniform flow distribution across ports

  • Provides proven, long-term maintenance-free service life

Contact us to discuss your requirements. We provide diffuser hydraulic analysis and design recommendations, but do not offer dilution modelling. You can also download our brochure, case studies and white papers.

If you are interested in receiving our newsletter, please subscribe here. You can also arrange an office CPD.


How Are Tideflex Diffuser Valves Different?

Sea outfalls and river outfalls for trade effluent discharge and wastewater effluent typically incorporate multiport diffusers that discharge effluent over a wide area though numerous ports. Providing a cost-effective means of achieving high initial effluent dilution, multiport diffusers minimize the impact of municipal and industrial discharges on the environment.

However, conventional diffusers are prone to sediment and saltwater intrusion which reduces the hydraulic capacity and dilution efficiency of the effluent diffuser system. These systems then need to be cleaned out and restored to service using dive teams at high costs. Tideflex Diffuser Valves overcome these challenges with their rubber duckbill design.

The Tideflex Effluent Diffuser System prevents intrusion of debris, sediment, salt water and aquatic life into the effluent outfall pipeline while providing excellent drainage with low flows at the same time.

Tideflex Diffuser Valves (TFD's) are custom-designed for every application based on jet velocity, open area and headloss requirements that are critical to achieving the required initial dilution within the hydraulic head limitations of the outfall. There are up to 50 different hydraulic variations of these valves per nominal size. An extensive amount of independent hydraulic testing was required on many sizes and stiffness of the valves to develop the hydraulic models Tideflex engineers use to assist in the design of multiport effluent diffusers.

TFD’s have been extensively used on multiport diffusers for over 20 years in municipal and industrial applications including chemical, pulp and paper, power (thermal-heat dissipation), textile (dilution of colour), lumber, agricultural, food, pharmaceutical, plastics, metals and fertilisers. TFD’s are installed on new outfall diffusers and can easily be retrofit to existing outfalls.
